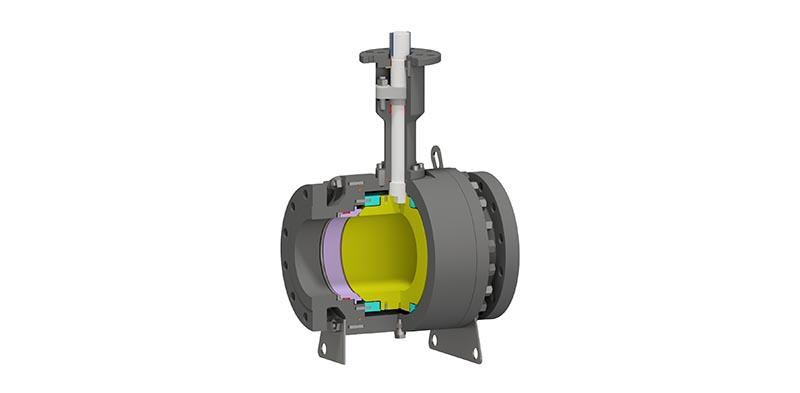

Trunnion Mounted Ball Valve Side Entry – High Temperature

Side-Entry (split-body) two- or three-piece bolted construction, Trunnion-supported, Floating seats spring energized, Full or Reduced Bore, Bi-Directional.

Production range:

API 6D:
Size: ½” – 64” (DN15-DN1600)
Class: ANSI 150 to 2500

Services: General / Sour / Corrosive

Standard Temperature: from 230 °C up to 450 °C (450 °F / 840 °F)

Design Standards

API 6D
ASME B16.34 / ASME VIII
ISO 14313 / ISO 5208
ASME B16.5 / B16.25 / B16.47 / B16.10
MSS SP 25 – 44

Certifications

API 6D
ISO 15848 – Measurement, Test and Qualification Procedures for Fugitive Emission
API 607 / API 6FA / ISO 10497
PED – 2014/68/UE
ATEX 2014/34/EU
SIL 3 – IEC 61508:2010
TR-CU 010 / 012 / 032
American Bureau of Shipping (ABS) Product Type Approval

Available Features:

Trunnion Mounted
Vent Bleeder / Drain Plug
Antistatic Device
Firesafe to API 607 / API 6FA
Anti-blowout Stem
Metal Seated
Graphite Sealings
Valve Bore / Face to Face / Special Ends Flanges according to customer requirements, including Hub, NORSOK, etc.
Special Vent & Drain
Extended Bonnet
Interlocking System
Transition and Pup Pieces
Suitable for Horizontal or Vertical Installation
Manual or Actuator Operated

Other features are available on request.

Product availability and configurations may change and be customised in accordance with individual requirements.
Contact our Sales Team for any details or further requests for information.
